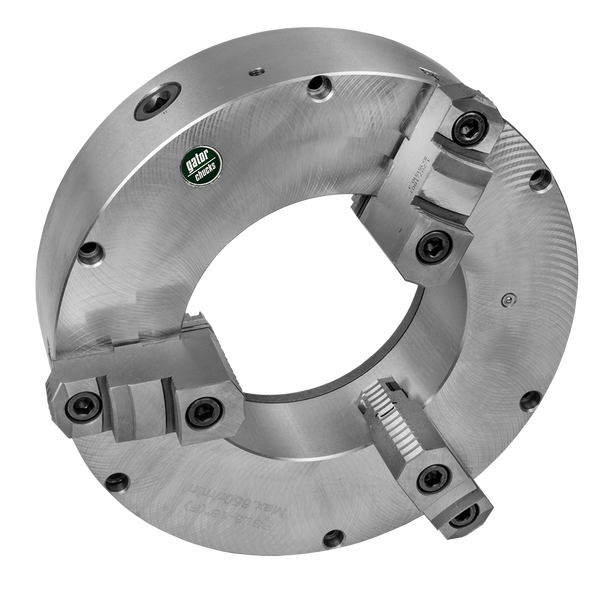

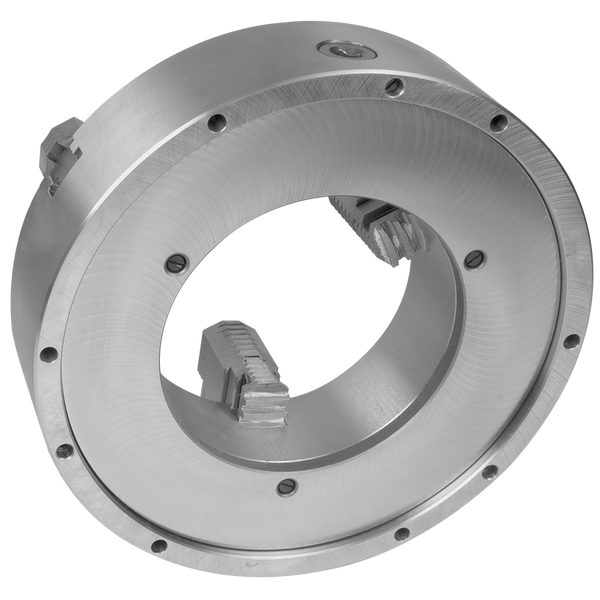

3-Jaw Scroll Chuck, 26" Steel Body, Large Thru-Hole, Front & Back Mount, 2 PC Hard Rev. Jaws

Part Number: 1-207-2601

Gator Catalog
View PDF

3-Jaw Scroll Chuck, 26" Steel Body, Large Thru-Hole, Front & Back Mount, 2 PC Hard Rev. Jaws
3-Jaw Scroll Chuck, 26" Steel Body, Large Thru-Hole, Front & Back Mount, 2 PC Hard Rev. Jaws
3-Jaw Scroll Chuck, 26" Steel Body, Large Thru-Hole, Front & Back Mount, 2 PC Hard Rev. Jaws
Description Where To Buy

Product Information

Chuck Type Scroll Self-Centering
Chuck Mount Front & Back Mount
Spindle Type Requires Adapter
Chuck Dia (in) 26
Thru-Hole (in) 15.98
Gripping Range Min-Max (in) 14.18 - 25.00
Chuck T.I.R (in) 0.004
Max RPM 250
Material Forged Steel
Number of Jaws 3
Jaw Type 2 PC Hard  Reversible
Weight Gross (lbs) 477
Includes 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts
⬇︎ Click HERE to Download STEP File ⬇︎

Product Dimensions

D (in) 26"
F (in) 24.409
E (H7) (in) 22.835
d Hole (in) 15.98
C (in) 0.5512
H (in) 5.32
h (in) 3.4763
Jaw Stroke Min (in) 14.80
Jaw Stroke Max (in) 19.57
M Mounting Bolt Thread (mm) M16
M Mounting Bolt Length (in) 1.97
Mounting Bolt  Qty 6
M1 Front Mounting Bolt Thread (mm) M16
M1 Front Mounting Bolt Length (in) 5.9
M1 Front Mounting Bolt Qty 6

Crossover to Other Brands

Bison 7-819-2600

Accessories

Jaws
Hard Top Jaws (Set) TJ-PS3-630
Hard Master Jaws (Set) MJ-PSL-660
Soft Top Jaws (Set) STJ-PS1-630
Spare Parts
Chuck Wrench (1Pc) W-PL-660
Scroll (1Pc) SC-PL-660
Pinion (1Pc) PI-PL-660
Pinion Screw (1Pc) PH-L-508
Chuck  Front Mounting Bolts (1Pc) MB-FPL-660
Chuck Back Mounting Bolts (1Pc) MB-PL-660
