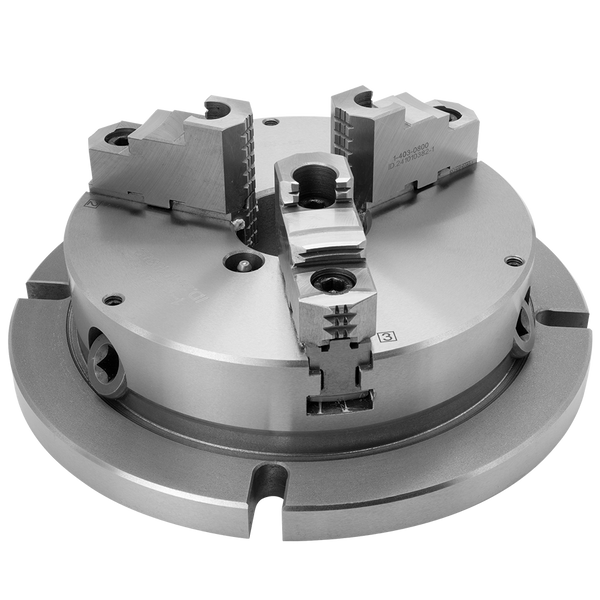

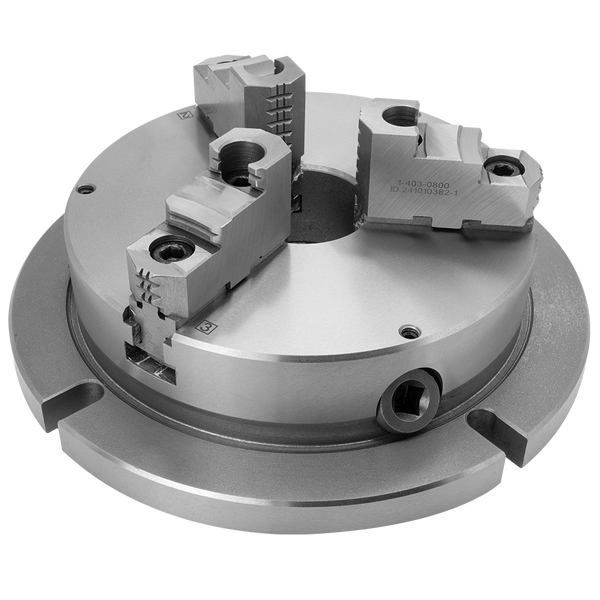

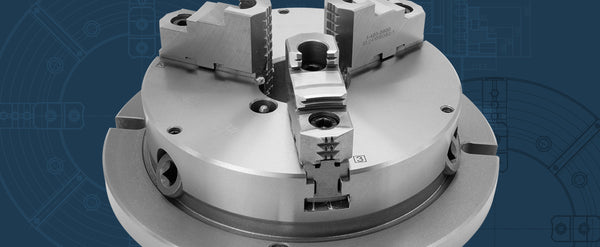

3-Jaw Low Profile Scroll Chuck, 8" Cast-Iron Body, Flat Back, 2 PC Hard Rev. Jaws

Part Number: 1-403-0800

Gator Catalog
View PDF

3-Jaw Low Profile Scroll Chuck, 8" Cast-Iron Body, Flat Back, 2 PC Hard Rev. Jaws
Description Where To Buy

Product Information

Chuck Type Scroll Self-Centering

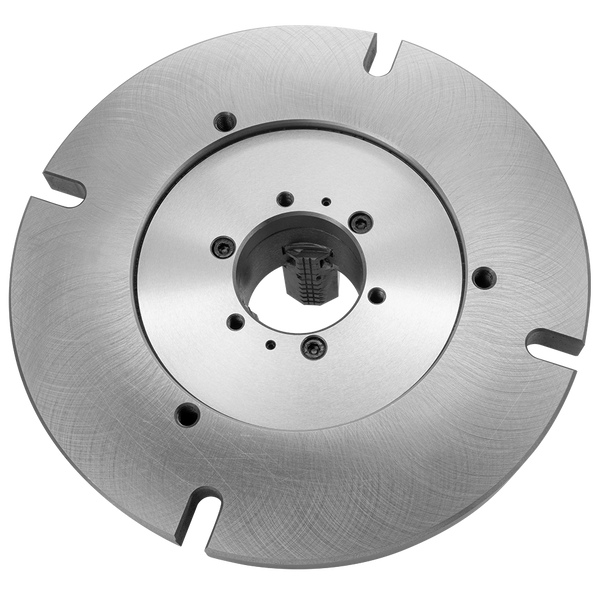

Chuck Mount Flat Back
Spindle Type Table Mount
Chuck Dia.(in) 8.27
Thru-Hole (in) 2.3622
Gripping Range Min - Max (in) 0.433 - 7.480
Chuck Accuracy Repeatability (in) 0.006
Material Cast Iron
Number of Jaws 3
Jaw Type 2 PC Hard  Reversible
Weight Gross (lbs) 40.00

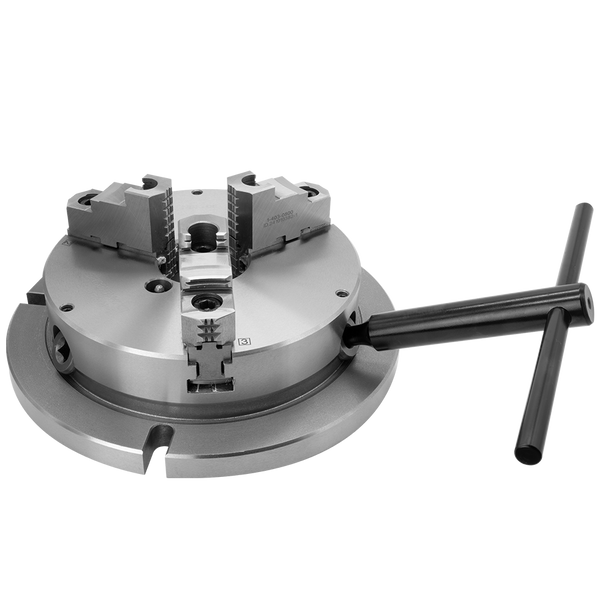

Includes 1 Set of Hard Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Key

Product Dimensions

A1 (in) 8.27
A2 (in) 10.63
C (in) 0.2362
D H6 (in) 6.10
E Hole (in) 2.36
F (in) 6.77
G Slot Size (in) 0.5118
B1 (in) 2.60
B2 (in) 0.79
H (in) 1.97
P (in) 2.09
O (in) 0.98
L (in) 3.15
M1 Jaw Bolts (mm) 3-M10x1.5
Jaw Bolt Hex Key Size (mm) 8
M2 Base Thread (mm)
 3-M10x1.5
N (in) 0.41
S (in) 0.43
Y Jaw Width (in)
 1.18

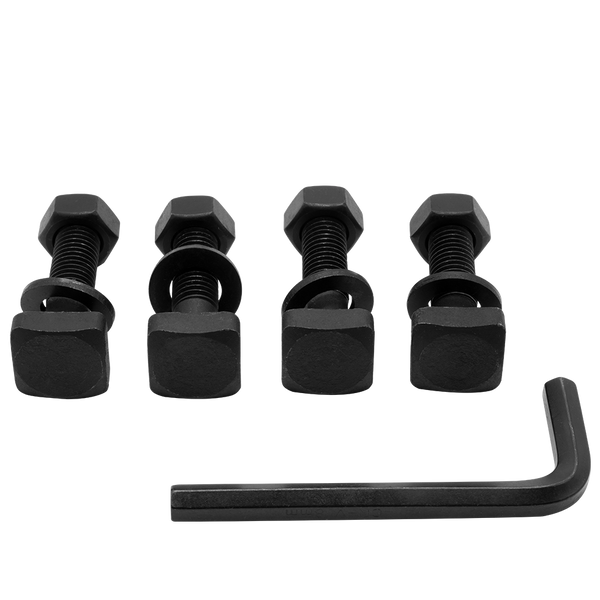

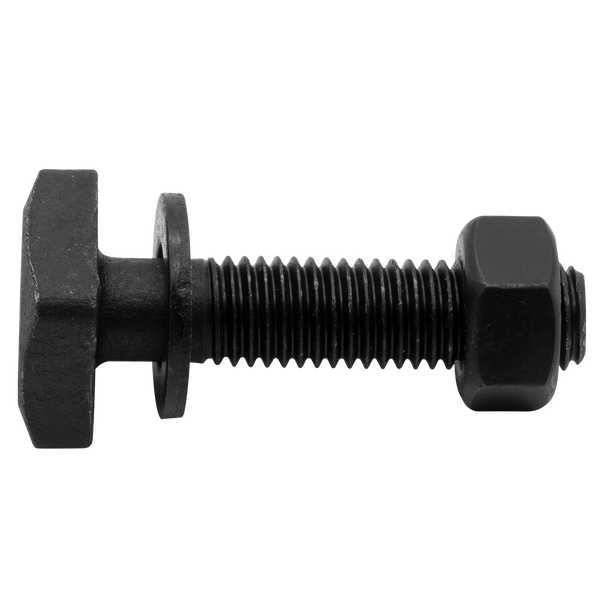

Mounting Bolt Thread (mm) M12
Mounting Bolt Length (in) 2.28
Mounting Bolt Square Head Size (in) 0.91
Mounting Bolt Nut Wrench Size (in) 0.75

Accessories

Jaws
Hard Top Jaws (Set) TJ-SK3-200
Hard Master Jaws (Set) MJ-SK3-200
Soft Top Jaws (Set) STJ-SK3-200
Spare Parts
Scroll (1Pc) SC-NB-200
Pinion (1Pc) PI-NB-200

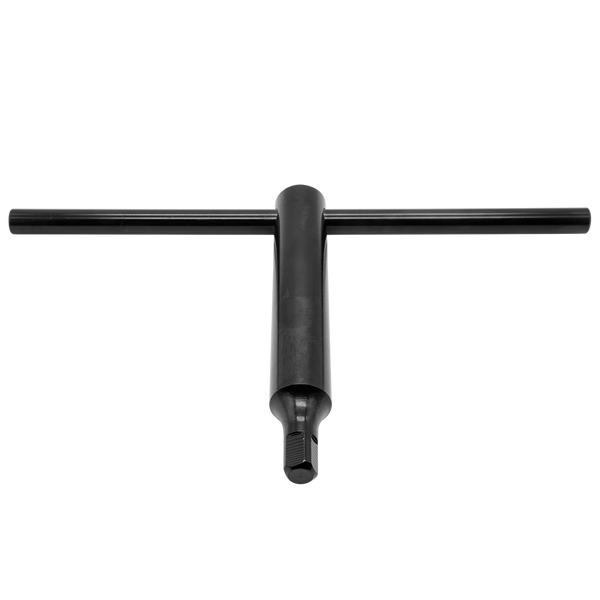

Chuck Wrench (1Pc)
 W-NB-200
Pinion Screw (1Pc) PH-NB-200
